外形安装尺寸同日本久保田公司生产的桥式传感器。弹性体与底座两端紧固，中间受力；钢球承载，可自动复位和调心，具有良好的抗侧向力和抗冲击性能；称重精度高；多层灌胶，密封可靠；表面处理工艺精湛，配用高质量电缆，可在恶劣工况下长期稳定工作。适用于各种电子汽车衡，轨道衡，料斗秤及各种称重测力场合。

It has the same appearance and dimension as bridge load cell produced by KUBOTA Co. (Japan). Two ends are fixed between elastomer and pedestal bearing load with steel ball in midway of beam, it can recover and correct core automatically, so has good ability for resisting lateral and impacting load and high accuracy. It has reliable multi-layers pouring pastern for sealing and fine surface treating. Using high quality cable it can work steadily for long time in bad condition. It is suitable for electronical truck scales, rail scales, hopper scales and various weighing scales etc.

量程范围（Scaling Range [t]）：10, 15, 20, 25, 30,35, 40 , 50

准确度等级（Accuracy Degree）：0.02 (C3级)

材质（Material）： 合金结构钢

技术指标 (Technical Specification)：

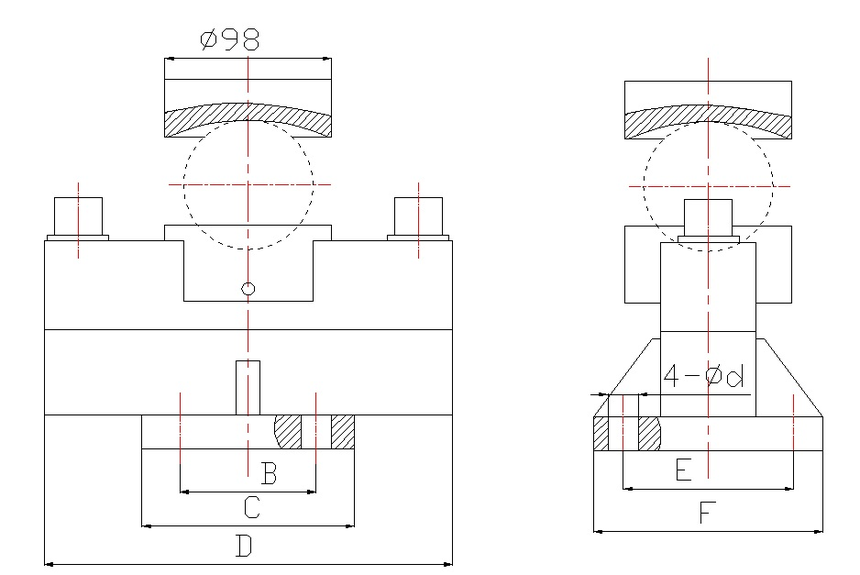

外形安装尺寸（Mounting Dimension）：

[注：本系列产品统一外形安装尺寸。Note: The series has the same mounting dimension. ]

外形安装尺寸（Mounting Dimension）：

电缆接线标识（Cable Color）:红—输入（+）；黑—输入（-）；绿—输出（+）；白—输出（-）。 Red—Input(+)；Black—Input(-)；Green—Output(+)；White—Output(-)

配套附件（Accessory）：钢球承载套件。Bearing steel ball set.

选配附件（Option）：橡皮防尘罩。Rubber proof dust cover.

其他说明（Note）：可按用户要求量程和外形尺寸供货。

We can supply according to scaling range and shape dimension required by users.
